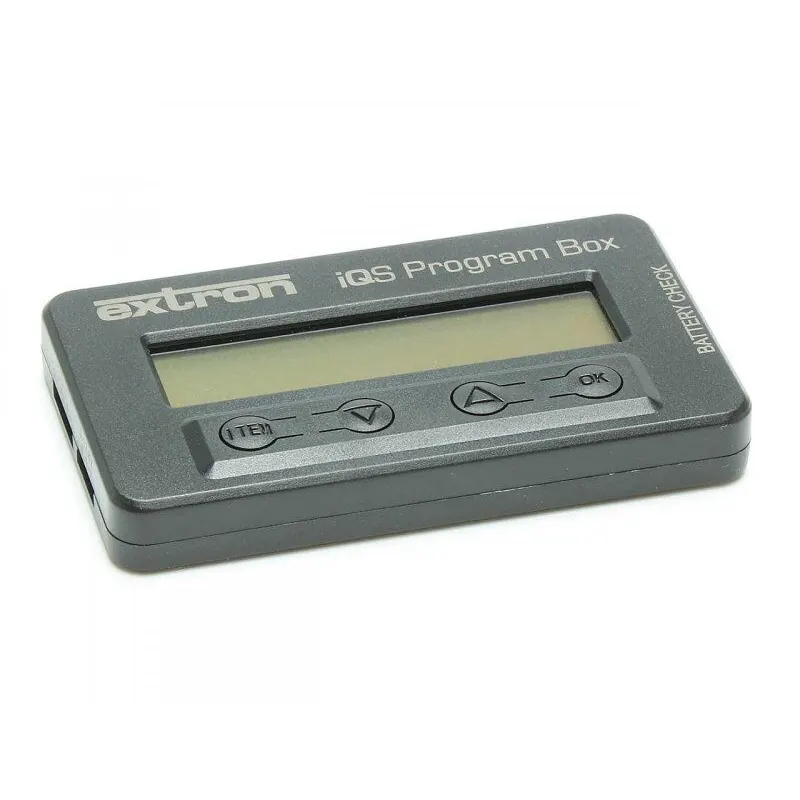

With the iQS programming box, you can easily set up your PICHLER and EXTRON brushless speed controller.
Integrated battery checker for up to 8S batteries and servo tester via the PWM output of your receiver.
Scope of delivery:
- Programming box, 2 patch cables, instructions DE/EN
Technical data:
- Dimensions: 87x49x11.5 mm
- Weight: 40g / operating voltage 5 – 12.6 V
Setting options:
- Battery type: LiPo, NiMH, NiCD
- Heli mode: RPM off / level 1 / level 2
- Starting behavior: Standard / Soft / Very soft
- Brake: On / Off
- BEC: Output voltage 5V / 6V
- Timing: Automatic / Low (7-22°) / High (22-30°)
- Direction of rotation: Normal / Reverse
- Switch-off voltage: 2.8V / 3.0V / 3.2V
- Motor run switch-off mode: Reduced / Off
With the iQS programming box, you can easily set up your PICHLER and EXTRON brushless speed controller.
Integrated battery checker for up to 8S batteries and servo tester via the PWM output of your receiver.
Scope of delivery:
- Programming box, 2 patch cables, instructions DE/EN
Technical data:
- Dimensions: 87x49x11.5 mm
- Weight: 40g / operating voltage 5 – 12.6 V
Setting options:
- Battery type: LiPo, NiMH, NiCD
- Heli mode: RPM off / level 1 / level 2
- Starting behavior: Standard / Soft / Very soft
- Brake: On / Off
- BEC: Output voltage 5V / 6V
- Timing: Automatic / Low (7-22°) / High (22-30°)
- Direction of rotation: Normal / Reverse
- Switch-off voltage: 2.8V / 3.0V / 3.2V
- Motor run switch-off mode: Reduced / Off
