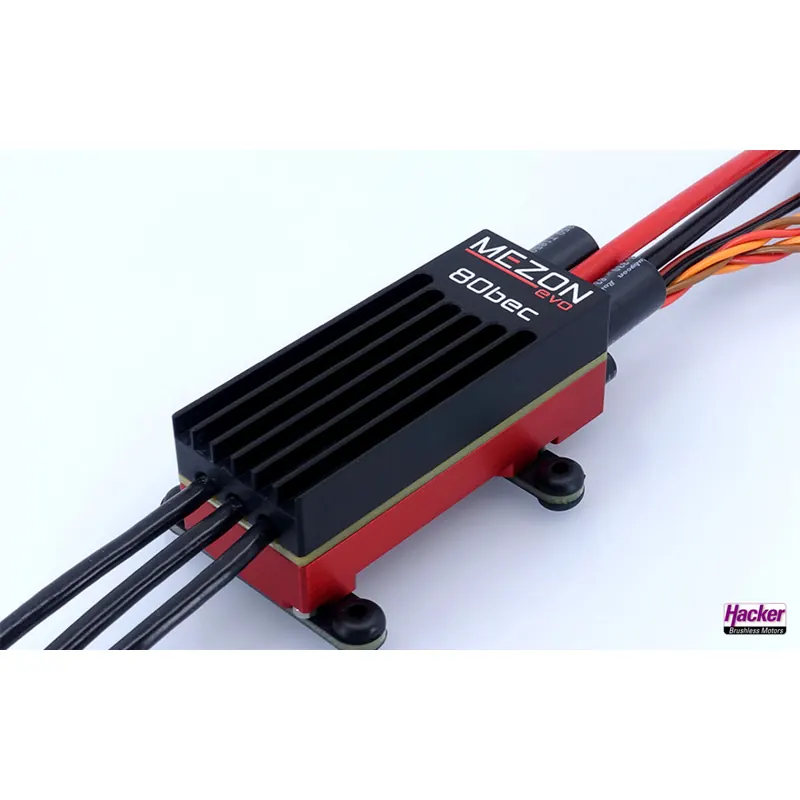

The Mezon EVO controllers are the successors of the previous product line of Mezon PRO controllers. The main advantages of this series are very effective cooling, full telemetry, speed control for helicopter operation and F3A mode. Mezon EVO controllers have an aluminium housing (except LMR types) which contributes to efficient cooling. The setup wizard helps the user to set up the controller intuitively and quickly using the Jeti Duplex transmitter.
The Mezon EVO is an absolutely universal controller for aeroplane, helicopter, ship and vehicle models for users of not only Jeti Duplex transmitters, but also other RC Systems.
Functions:
- Full EX telemetry (voltage, current, capacitance, rotation, etc.).
- Set-up of the controller via EX-bus communication from the JETI Duplex transmitter via the unit overview
- Precise controller and full support also for helicopter models
- F3A mode for aerobatic models
- adjustable brake with back energy recovery into the battery
- Powerful BEC with adjustable output voltage
- large supply voltage range 2 – 12 Lixx (max. 51V)
- bidirectional motor run possible (forward/reverse) active proportional brake
- compact dimensions user
- friendly setup wizard for convenient and quick set-up („Quick Setup mode“)
- an „Expert mode“ with access to all setting options
- no heat sink, „LMR“ means „Limited Motor Runtime“ = for short motor running times, e.g. in glider operation
- high efficiency
- firmware upgrade
- possible wide range of adjustable parameters
Technical data:
- Weight: 83g
- Dimensions: 28 x 20 x 85mm
- Continuous current: 85A
- Telemetry: Yes
- Application temperature: -10 to 85°C
- Supply voltage: 6 to 51V
- LiXX batteries: 2 to 12
- Resistance switched through: 2 x 1.2mOhm
- Conductor cross-section (input/output): 4.0 / 2.5mm²
- OPTO: Yes
- Housing: Aluminium
Scope of delivery:
- MEZON EVO 85 OPTO
- Fixing-kit
- Instruction
